Universal Single LNB Product Specification Model No UI1K1

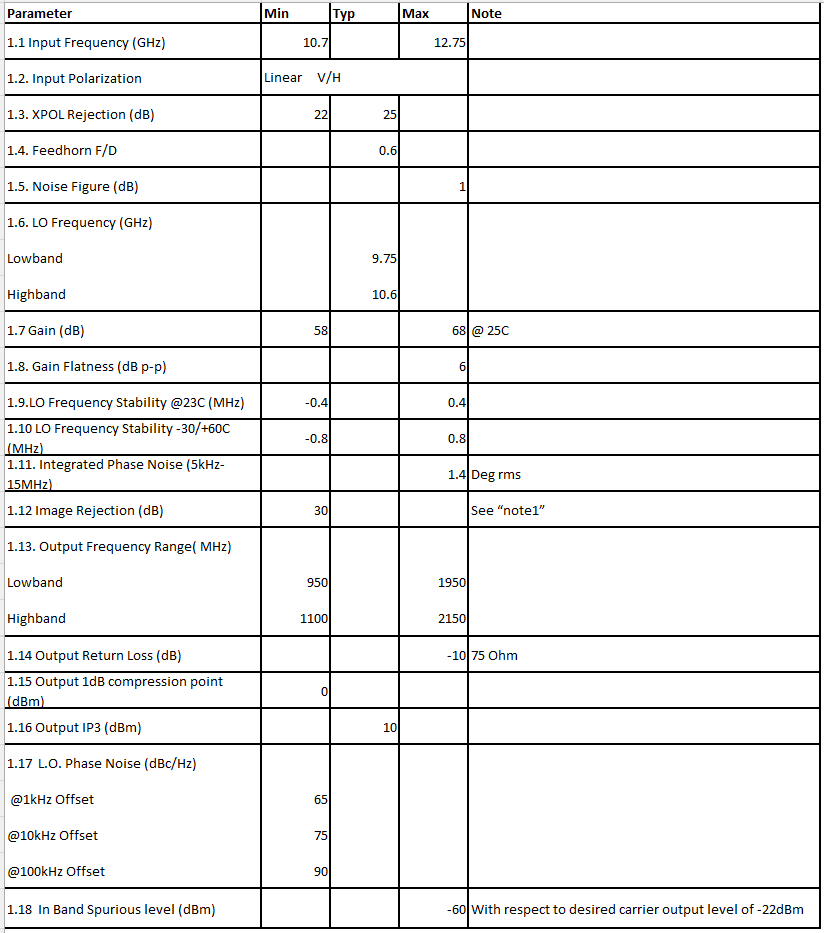

Table 1: RF Parameters

Note1, V/H image rejection is typically 30dB (limited by ALLWINSILICON  A3101 chip).

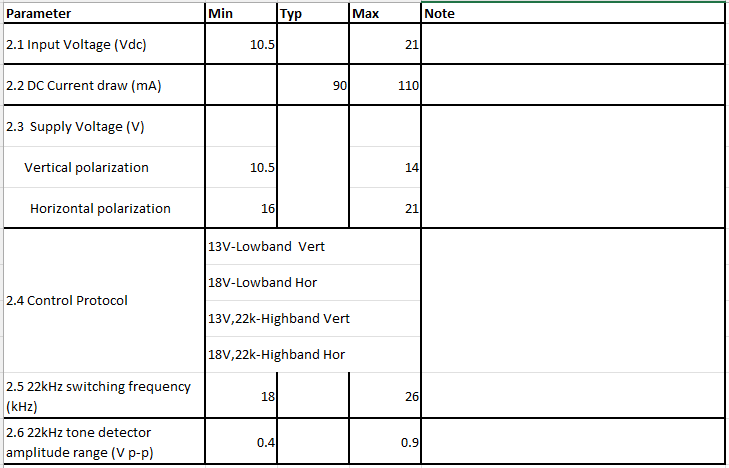

Table 2: DC / Control Parameters

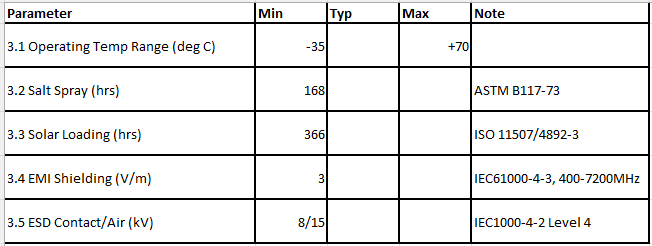

Table 3:  Environmental

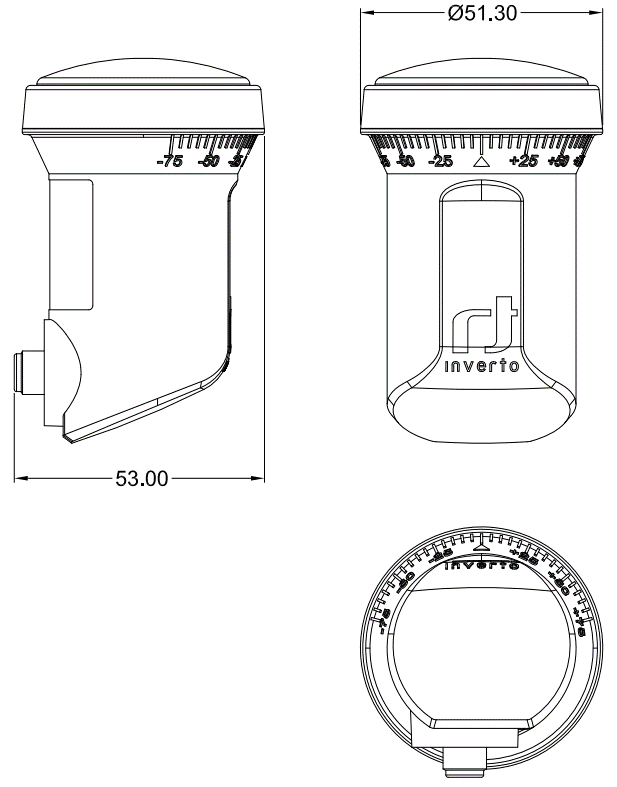

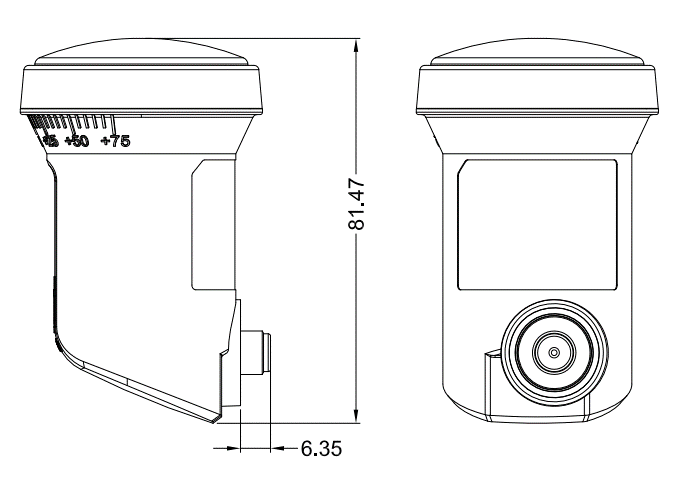

Physical Outline
