PS034

Viasat Morpheus ODA Product Specification

Revision History

 Prepared by:  Andy Baird/Jon Walker

PROPRIETARY AND CONFIDENTIAL: THE INFORMATION CONTAINED IN THIS DOCUMENT IS THE SOLE

PROPERTY OF SY SCIENCE AND TECHNOLOGY.  ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF SY SCIENCE AND TECHNOLOGY IS STRICTLY PROHIBITED.

 Introduction

The Viasat Morpheus ODA is a dual polarisation outdoor directional antenna designed to receive and transmit 5G signals from an indoor modem. The unit includes a calibration feature where antenna ports are connected together. This allows cable loss calibration to be performed when used in conjunction with the Morpheus IDU.

Internal switching is controlled from IDU via a DC voltage on the coax cable. With no DC voltage applied the antenna will be isolated from the IDU

Key Features:

 - Dual polarization antenna

- 75 Ohm F-Female Interface to IDU

- Diecast chassis

- Weatherproof

- Surge protection

Fig 1: ODA Block Diagram Cal Mode switch settings

 Fig 2:  ODA Block Diagram Normal Operating Mode switch settings

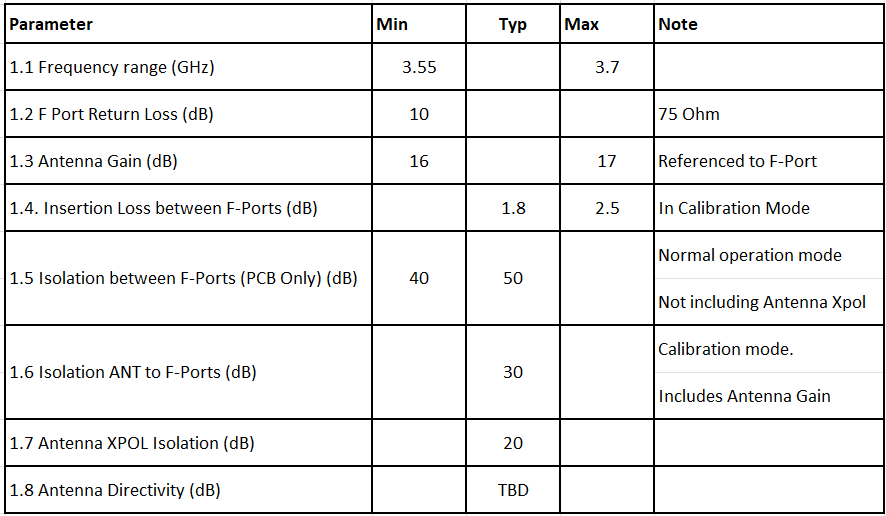

 Table 1: RF Parameters

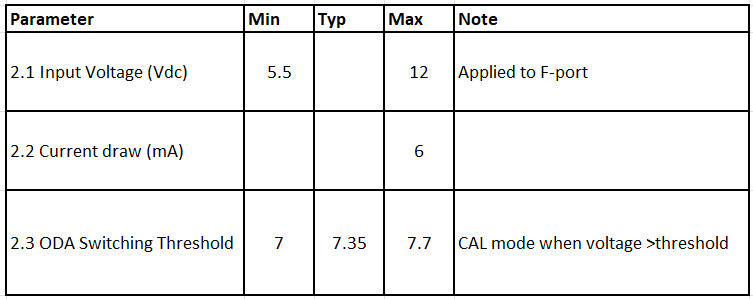

 Table 2: DC / Control Parameters

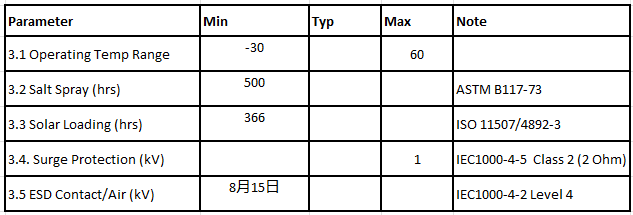

 Table 3:  Environmental

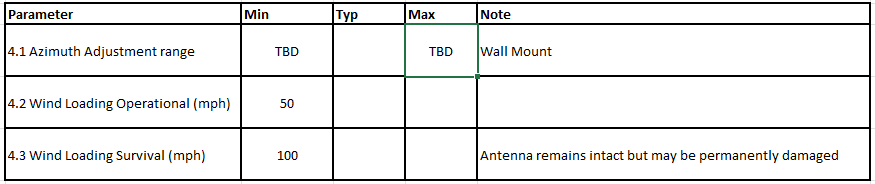

 Table 4. Mechanical (TBC)

Mounting Pole

Alignment Aids

Grounding?

5. Regulatory Requirements (TBA)

CE, RoHS,WEEE, REACH, FCC
